Fire Resistant XLPE Round Wire Cable with Customized Request Material Shape

Fire Resistant XLPE Round Wire Cable with Customized Request Material Shape

كابل سلك دائري XLPE مقاوم للحريق

سلك كهربائي XLPE مخصص

كابل سلك دائري معتمد من UL

إصدار الشهادات:

ISO9001, CCC, RoHS, TUV UL

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
النموذج رقم:
كابل XLPE
المواد موصل:
النحاس
غمد المواد:
مادة بي.في.سي
مادة العزل:
XLPE
شكل المادة:
أسلاك مستديرة
مجموعة من تطبيق:
مضاد للحريق
العلامة التجارية:
لوسي
الشركة:
تصنيع
العادة:
العادة
السترة 1:
السيليكون
درجة مقاومة للحريق:
مقاوم النار
الحزمة:
لفافة
قطرها:
25ملم
القطر 1:
35ملم
قطر 2:
50ملم
القطر 3:
75 ملم
حزمة النقل:
كرتون
المواصفات:
50*55*60سم
العلامة التجارية:
لوسي
الأصل:
الصين
الرمز السريع:
854449290
القدرة على العرض:
5000 قطعة / يوم
حجم الحزمة:
850.00سم * 850.00سم * 580.00سم
الوزن الإجمالي للحزمة:
210.000كجم
النوع:
معزول
نوع الموصل:
تقطعت
طلب:
التدفئة العلوية، والتدفئة تحت الأرض، والطاقة الجديدة
العينات:
دولار أمريكي 100/قطعة 1 قطعة (الحد الأدنى للطلب) |
التخصيص:
متاح -- طلب مخصص
تكلفة الشحن:
حول تكلفة الشحن ووقت التسليم المقدر.
 :
الدفع الأولي الدفع الكامل
عملة:
دولار أمريكي
العودة والمبالغ المستردة:
يمكنك التقدم بطلب استرداد الأموال خلال مدة تصل إلى 30 يومًا بعد استلام المنتجات.
إبراز:

كابل سلك دائري XLPE مقاوم للحريق

,

سلك كهربائي XLPE مخصص

,

كابل سلك دائري معتمد من UL

شروط الدفع والشحن
وصف المنتج

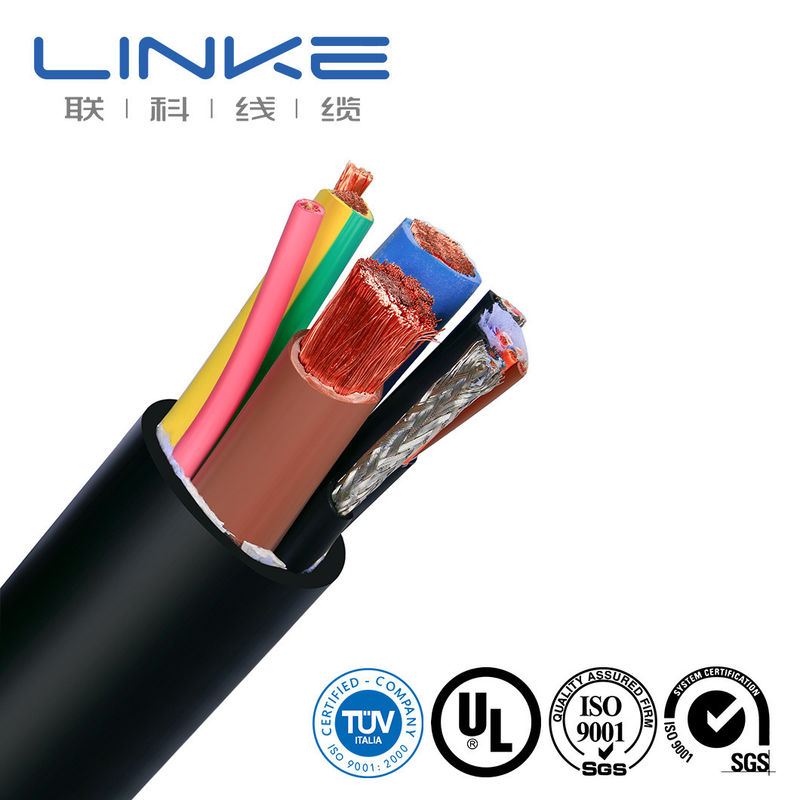

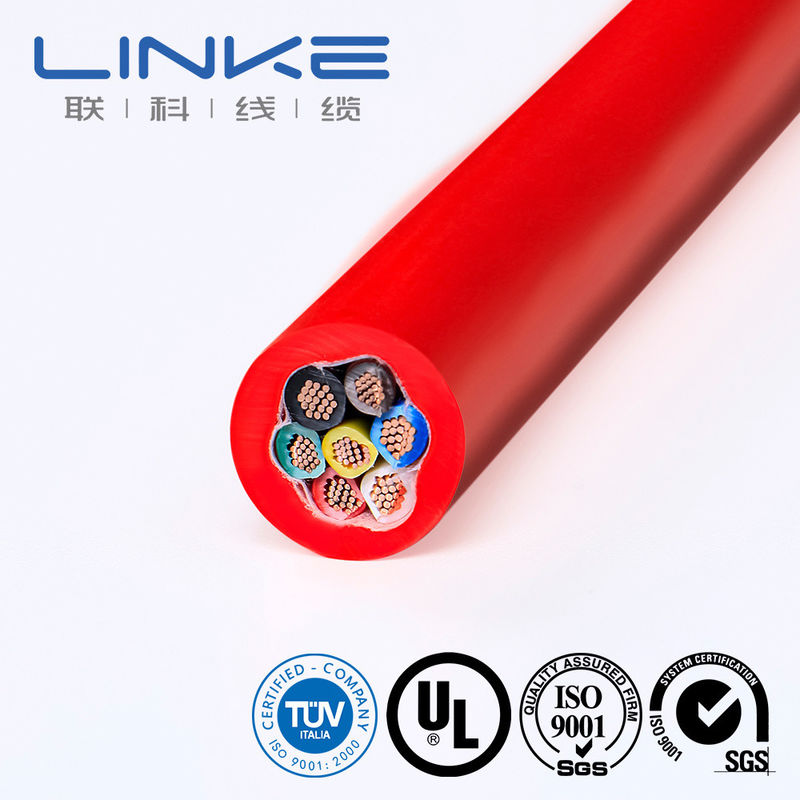

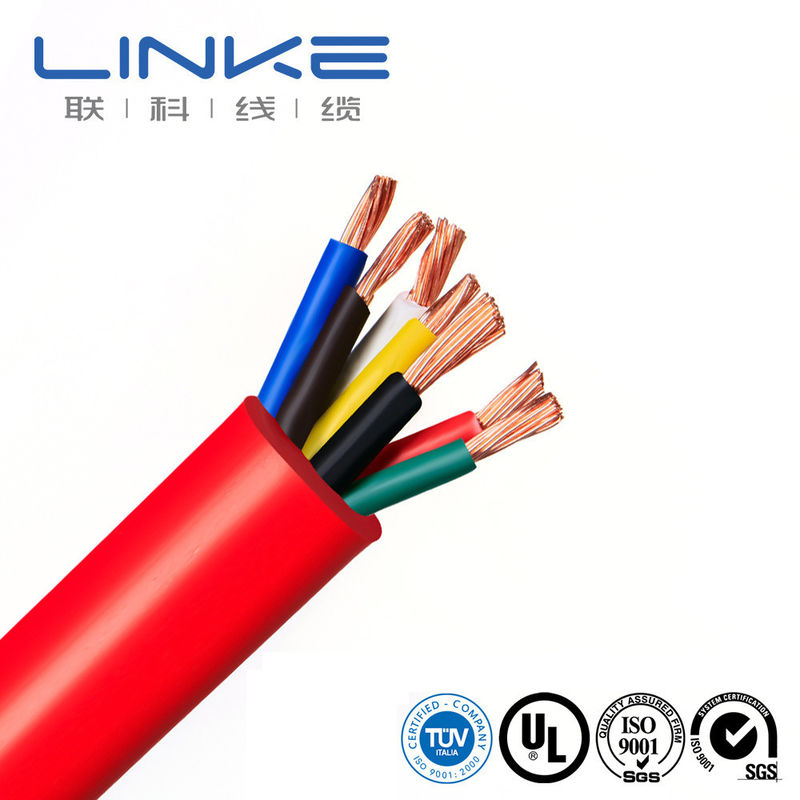

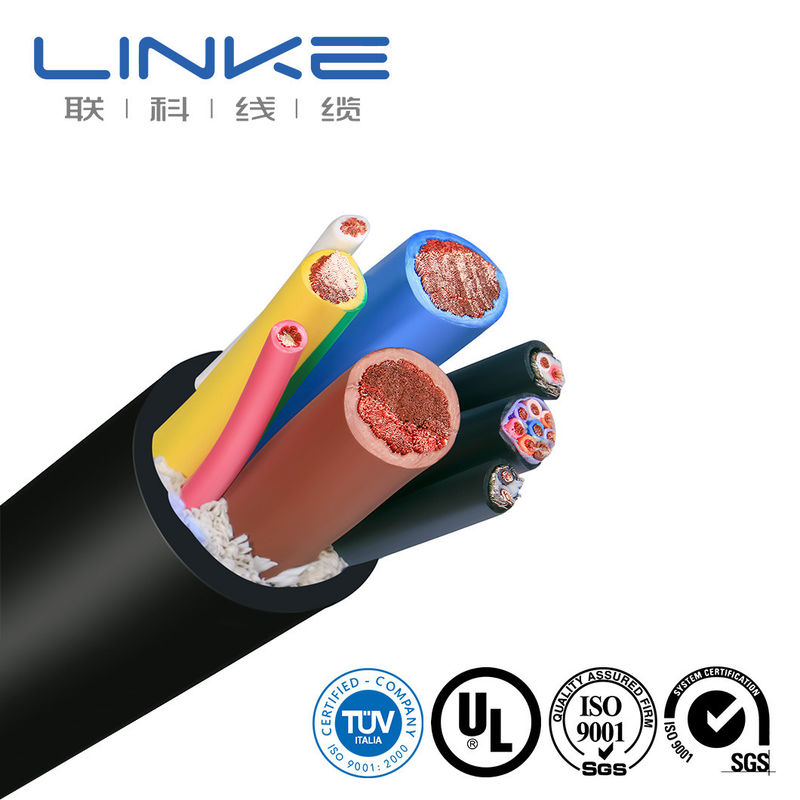

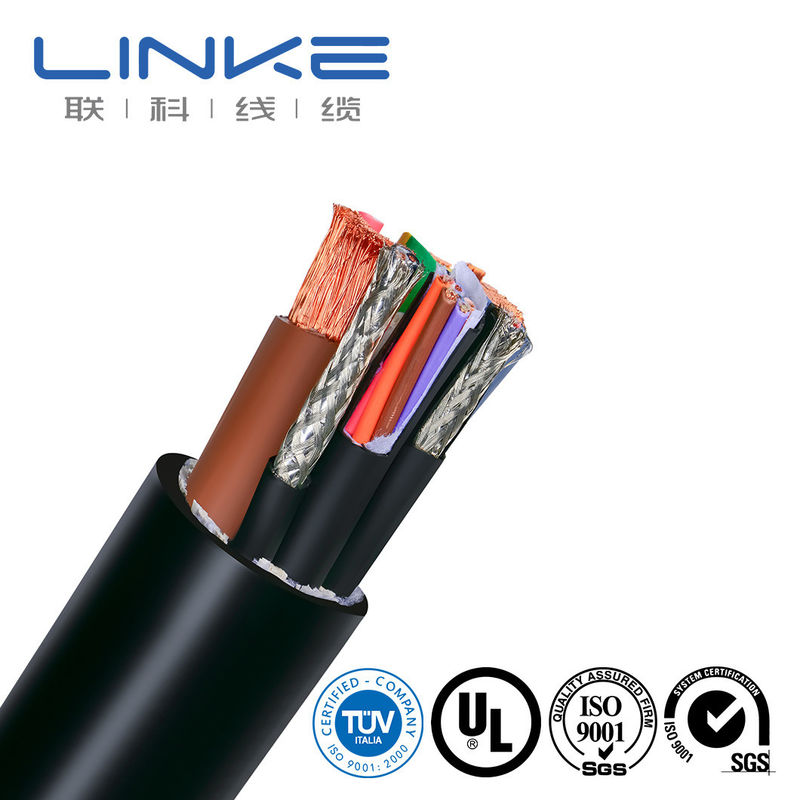

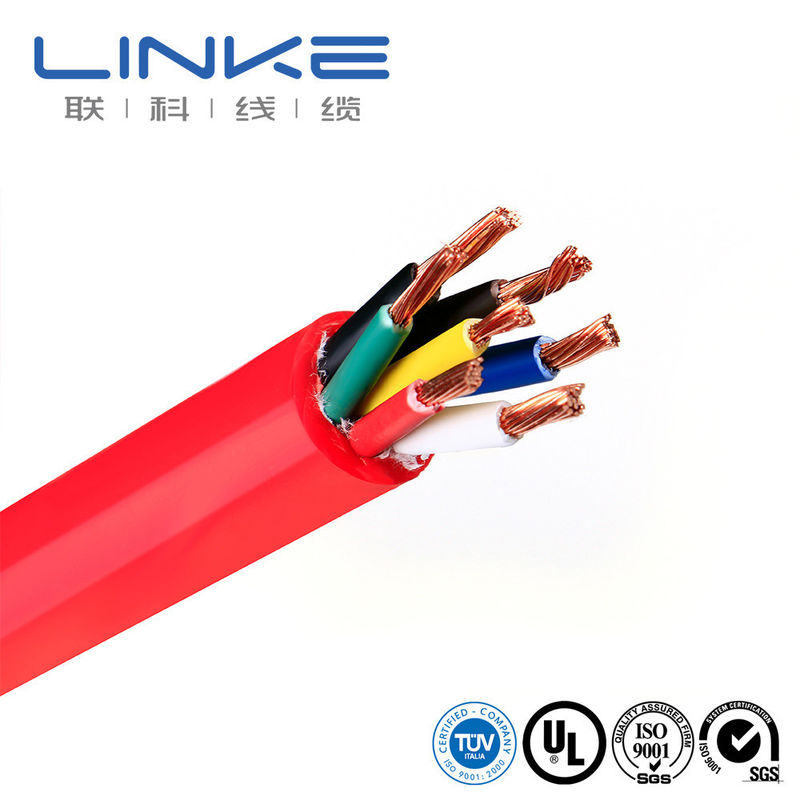

Fire Resistant XLPE Wire Cable
Fire-resistant cable refers to the cable that can maintain a certain period of safe operation in the case of flame combustion. Fire-resistant cables are widely used in high-rise buildings, underground railways, underground streets, large power stations and important industrial and mining enterprises and other places related to fire safety and fire rescue, such as fire equipment and emergency lighting and other emergency facilities power supply lines and control lines.




No. Of cores x Construction
(mm2)
Conductor Construction
(n / mm)
Conductor No./mm Insul.
Thick. (mm)
Current Aarring Capacity (A)
1X1.5 30/0.25 1.6  4.9  30.00
1X2.5 50/0.256 2.1  5.5  41.00
1X4.0 56/0.3 2.6  6.2  55.00
1X6.0 84/0.3 3.2  7.2  70.00
1X10 142/0.3 4.0  9.1  98.00
1X16 228/0.3 5.7  10.2  132.00
1X25 361/0.3 6.8  12.0  176.00
1X35 494/0.3 8.8  13.8  218.00
1X50 418/0.39 10.0  16.0  280.00
3X70 589/0.39 11.8  18.4  350.00
3X95 798/0.39 13.8  21.3  410.00


Fire Resistant XLPE Wire CableFire Resistant XLPE Wire Cable

Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and  improve the quality of one's life.
Fire Resistant XLPE Wire CableFire Resistant XLPE Wire Cable

Our certification:

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
Fire Resistant XLPE Wire Cable
ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.

Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2
Fire Resistant XLPE Wire CableFire Resistant XLPE Wire Cable

FAQ



1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
